Build Real-Time Knowledge Graph For Documents with LLM

Turn a folder of Markdown docs into a Neo4j knowledge graph: an LLM extracts subject-predicate-object triples, and CocoIndex keeps the graph in sync as the docs change.

Written by
Linghua Jin
Linghua Jin Cofounder & CEO of CocoIndex

Updated Jul 10, 2026
Build Real-Time Knowledge Graph For Documents with LLM

Documentation is a web of concepts pretending to be a list of files. Every page asserts relationships (“CocoIndex supports incremental processing”), but they are locked in prose. This post turns a folder of Markdown documents (CocoIndex’s own docs) into a Neo4j knowledge graph: an LLM reads each document and extracts the relationships between the concepts it talks about, and CocoIndex reconciles them into the graph incrementally as documents change.

We generate two kinds of relationships:

  1. Relationships between subjects and objects. E.g., “CocoIndex supports Incremental Processing”.
  2. Mentions of entities in a document. E.g., basics.md mentions CocoIndex and Incremental Processing.

The end result is a small, well-defined graph schema: two node labels (Document and Entity) and two relationship types (RELATIONSHIP between entities, and MENTION connecting a document to the entities it references). Everything the LLM extracts lands in one of those four shapes, which is what keeps the graph queryable rather than a loose pile of triples.

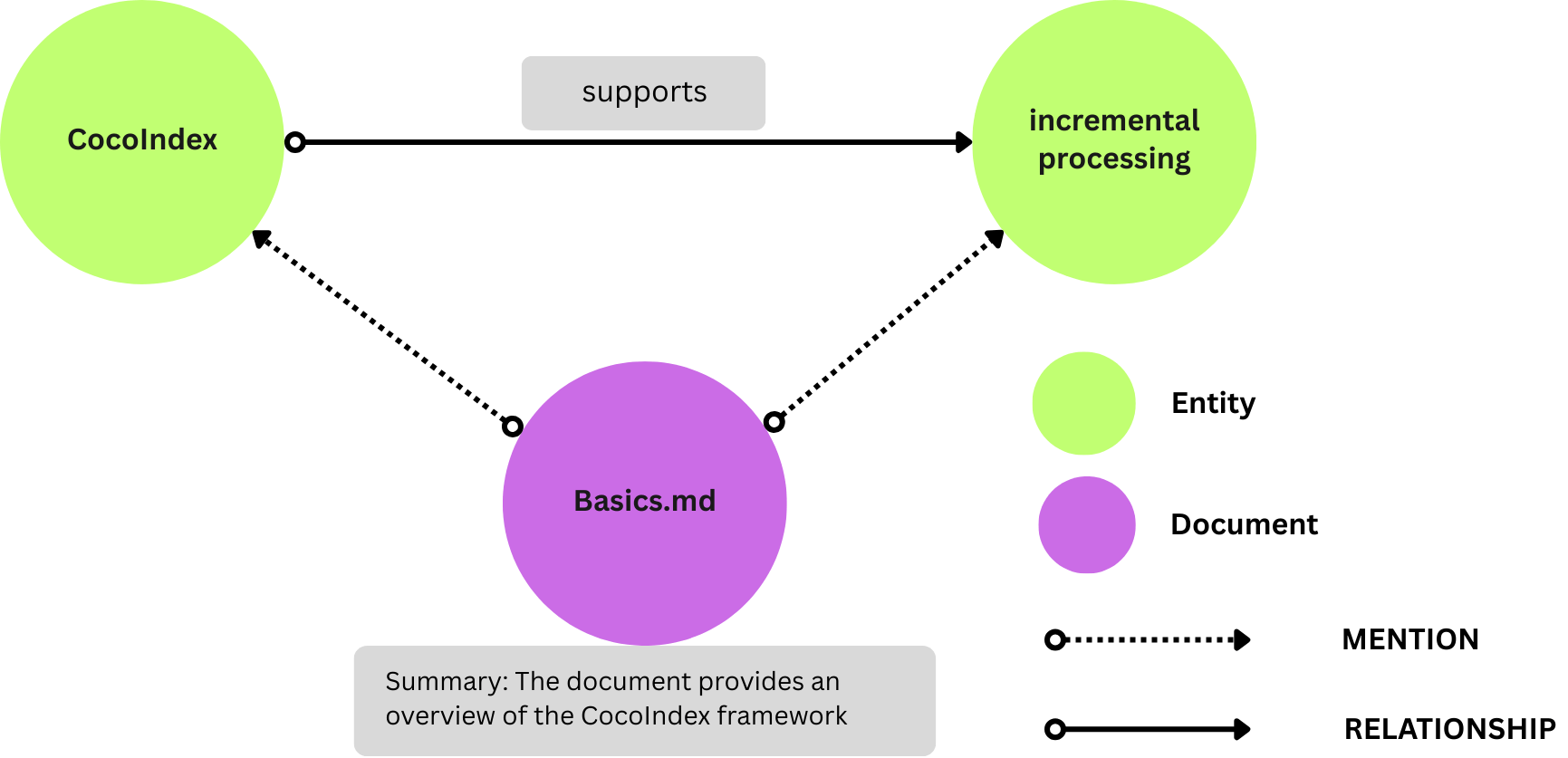

Example knowledge graph: the Basics.md document node mentions the CocoIndex and Incremental Processing entity nodes, which are connected by a "supports" relationship.

The source code is available at CocoIndex Examples - docs_to_knowledge_graph.

Prerequisites

  • Install Neo4j, a graph database. A docker one-liner is in the Run it section below.
  • An LLM API key. The example defaults to OpenAI, and the model is a LiteLLM id, so you can set LLM_MODEL=ollama/llama3.2 to run the extraction locally instead.

The graph schema

All nodes for Neo4j need two things:

  1. Label: the type of the node. E.g., Document, Entity.
  2. Primary key: the field that uniquely identifies the node. E.g., filename for Document nodes.

CocoIndex uses the primary key to match and deduplicate nodes: declaring the same key twice produces one node. In CocoIndex v1 the schema is plain dataclasses:

python
from dataclasses import dataclass

@dataclass
class Document:
    filename: str  # primary key
    title: str
    summary: str

@dataclass
class Entity:
    value: str  # primary key — the concept name

@dataclass
class Relationship:
    """RELATIONSHIP edge payload. ``id`` is a stable hash of the triple so the
    same (subject, predicate, object) always maps to a single edge; the
    ``predicate`` is stored as an edge property."""
    id: int
    predicate: str

MENTION carries no payload, so it needs no dataclass at all: the Neo4j connector derives its identity from the (document, entity) endpoints, one edge per pair.

The flow

Entities are shared across documents: the same concept, say CocoIndex, shows up in triples from many files, and every one of those references must collapse onto a single Entity node. So the pipeline runs in two phases. Phase 1 processes each document independently: it declares the Document node and extracts the relationship triples. Phase 2 is a single pass over all the triples: it owns the deduplicated Entity nodes and declares the RELATIONSHIP and MENTION edges.

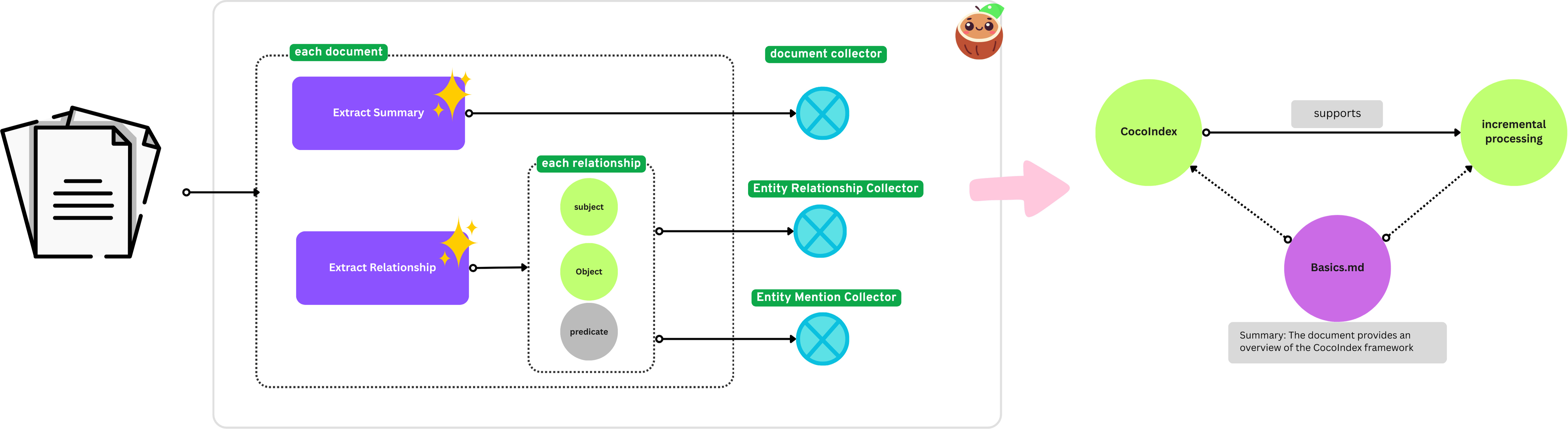

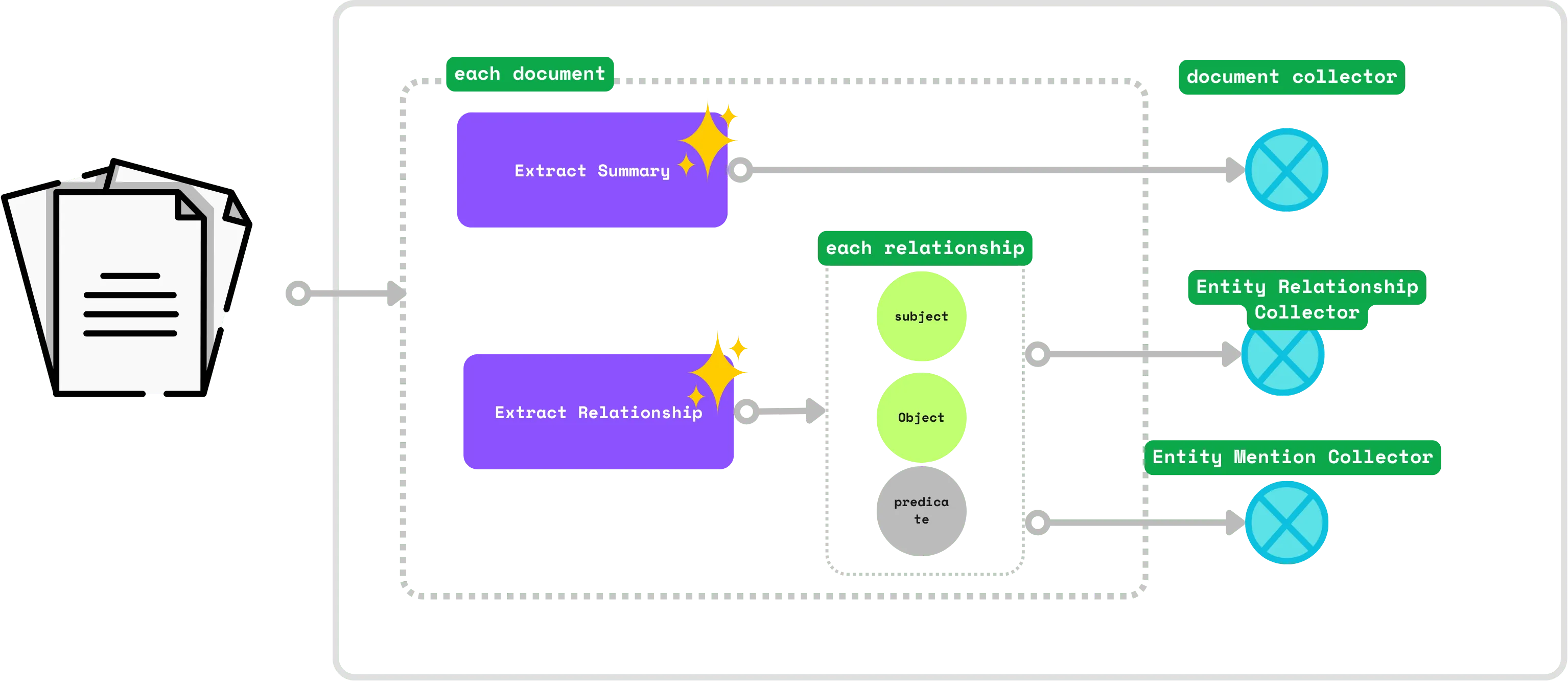

Two-phase flow: Markdown files feed per-document extraction components that declare Document nodes and produce triples; a single build_graph pass declares the deduplicated Entity nodes and the RELATIONSHIP and MENTION edges into Neo4j.

Because phase 1 runs one component per file, editing one document re-extracts only that document. The graph pass then diffs: nodes and edges that are no longer supported by any document are removed automatically.

Connect Neo4j

The Neo4j connection is provided once in the app lifespan and read anywhere with a ContextKey. The LLM model name is a context value too, declared with detect_change=True so swapping models re-extracts everything against the new one:

python
import cocoindex as coco
from cocoindex.connectors import localfs, neo4j

KG_DB = coco.ContextKey[neo4j.ConnectionFactory]("kg_db")
LLM_MODEL = coco.ContextKey[str]("llm_model", detect_change=True)


@coco.lifespan
async def coco_lifespan(builder: coco.EnvironmentBuilder) -> AsyncIterator[None]:
    builder.provide(
        KG_DB,
        neo4j.ConnectionFactory(
            uri=os.environ.get("NEO4J_URI", "bolt://localhost:7687"),
            auth=(
                os.environ.get("NEO4J_USER", "neo4j"),
                os.environ.get("NEO4J_PASSWORD", "cocoindex"),
            ),
            database=os.environ.get("NEO4J_DATABASE", "neo4j"),
        ),
    )
    builder.provide(LLM_MODEL, os.environ.get("LLM_MODEL", "openai/gpt-5-mini"))
    yield

Summarize each document

The extraction schemas are Pydantic models, and the field descriptions are part of the prompt. For the summary we ask for a title and one paragraph:

python
import pydantic

class DocumentSummary(pydantic.BaseModel):
    title: str = pydantic.Field(description="A concise title for the document.")
    summary: str = pydantic.Field(
        description="A one-paragraph summary of what the document covers."
    )

Extraction is one CocoIndex function that calls the model through instructor over LiteLLM, forcing the response to match the schema. memo=True memoizes the result by content, so an unchanged document is never sent to the model twice:

python
@coco.fn(memo=True)
async def extract_summary(content: str) -> DocumentSummary:
    client = instructor.from_litellm(litellm.acompletion, mode=instructor.Mode.JSON)
    result = await client.chat.completions.create(
        model=coco.use_context(LLM_MODEL),
        response_model=DocumentSummary,
        messages=[
            {"role": "system", "content": SUMMARY_PROMPT},
            {"role": "user", "content": content},
        ],
    )
    return DocumentSummary.model_validate(result.model_dump())

For each document the model returns a typed summary:

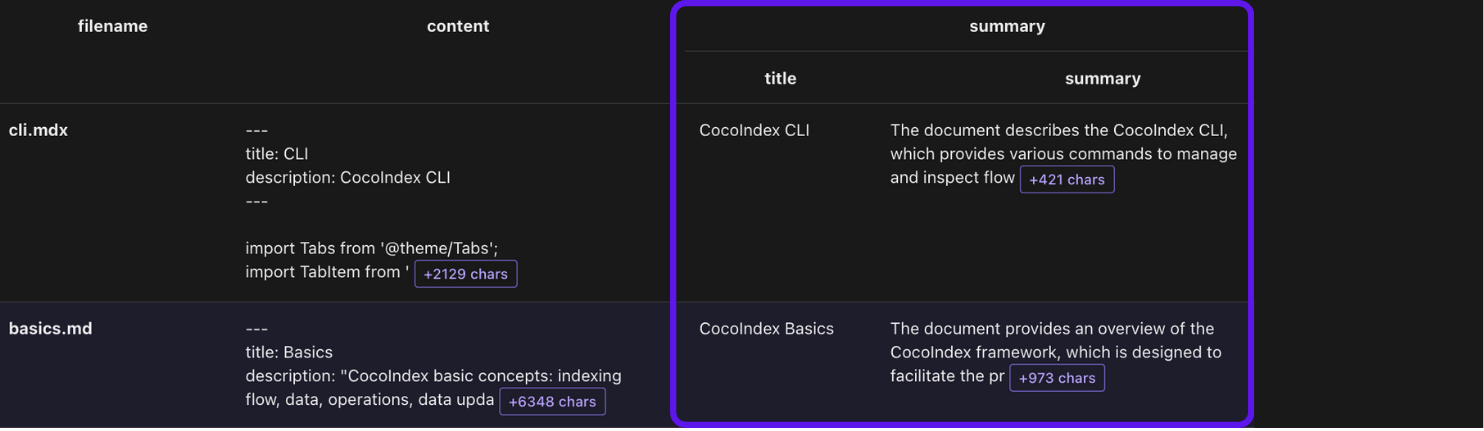

The extract_summary function reads each Markdown file and returns a typed DocumentSummary: for basics.md, the title "CocoIndex Basics" and a one-paragraph summary.

Extract relationship triples

A relationship is a (subject, predicate, object) triple. The subject and object become Entity nodes, and the predicate is the label on the edge between them:

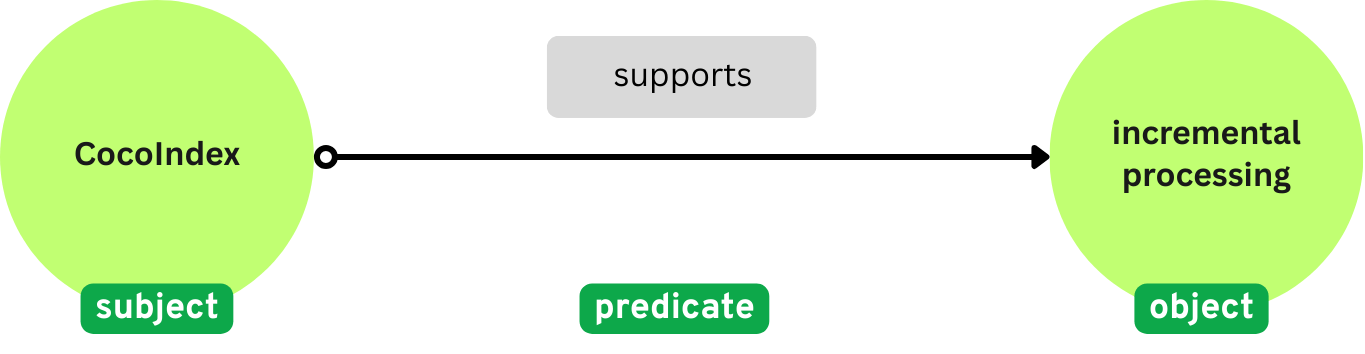

A triple in the graph: the subject (CocoIndex) and object (Incremental Processing) are entity nodes, and the predicate (supports) is stored on the relationship edge connecting them.

The Pydantic model mirrors that shape, and the system prompt steers the model toward concepts rather than code:

python
class ExtractedRelationship(pydantic.BaseModel):
    subject: str = pydantic.Field(
        description="The concept the statement is about, e.g. 'CocoIndex'."
    )
    predicate: str = pydantic.Field(
        description="How subject relates to object, e.g. 'supports'."
    )
    object: str = pydantic.Field(
        description="The related concept, e.g. 'Incremental Processing'."
    )

class RelationshipList(pydantic.BaseModel):
    relationships: list[ExtractedRelationship] = pydantic.Field(default_factory=list)


RELATIONSHIP_PROMPT = """\
You extract a concept knowledge graph from technical documentation.
List the salient (subject, predicate, object) relationships between concepts.
Focus on concepts and ignore code examples and implementation details.
Use concise noun phrases for subjects and objects and a short verb phrase for
the predicate. Return only relationships supported by the text.
"""

The extraction function has the same shape as the summary one, memoized the same way:

python
@coco.fn(memo=True)
async def extract_relationships(content: str) -> list[Triple]:
    client = instructor.from_litellm(litellm.acompletion, mode=instructor.Mode.JSON)
    result = await client.chat.completions.create(
        model=coco.use_context(LLM_MODEL),
        response_model=RelationshipList,
        messages=[
            {"role": "system", "content": RELATIONSHIP_PROMPT},
            {"role": "user", "content": content},
        ],
    )
    validated = RelationshipList.model_validate(result.model_dump())
    return [Triple(r.subject, r.predicate, r.object) for r in validated.relationships]

On the CocoIndex docs, one file yields a few dozen triples:

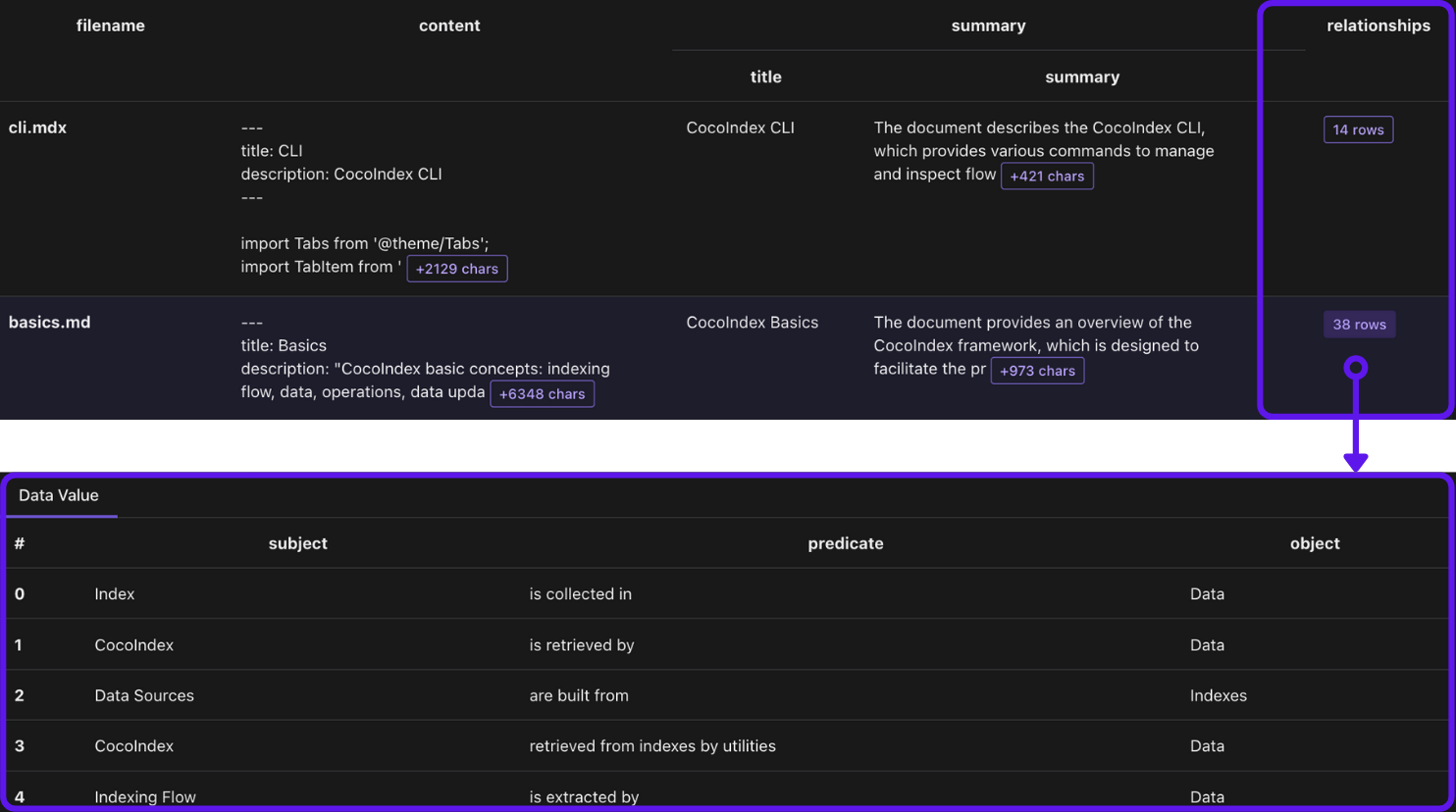

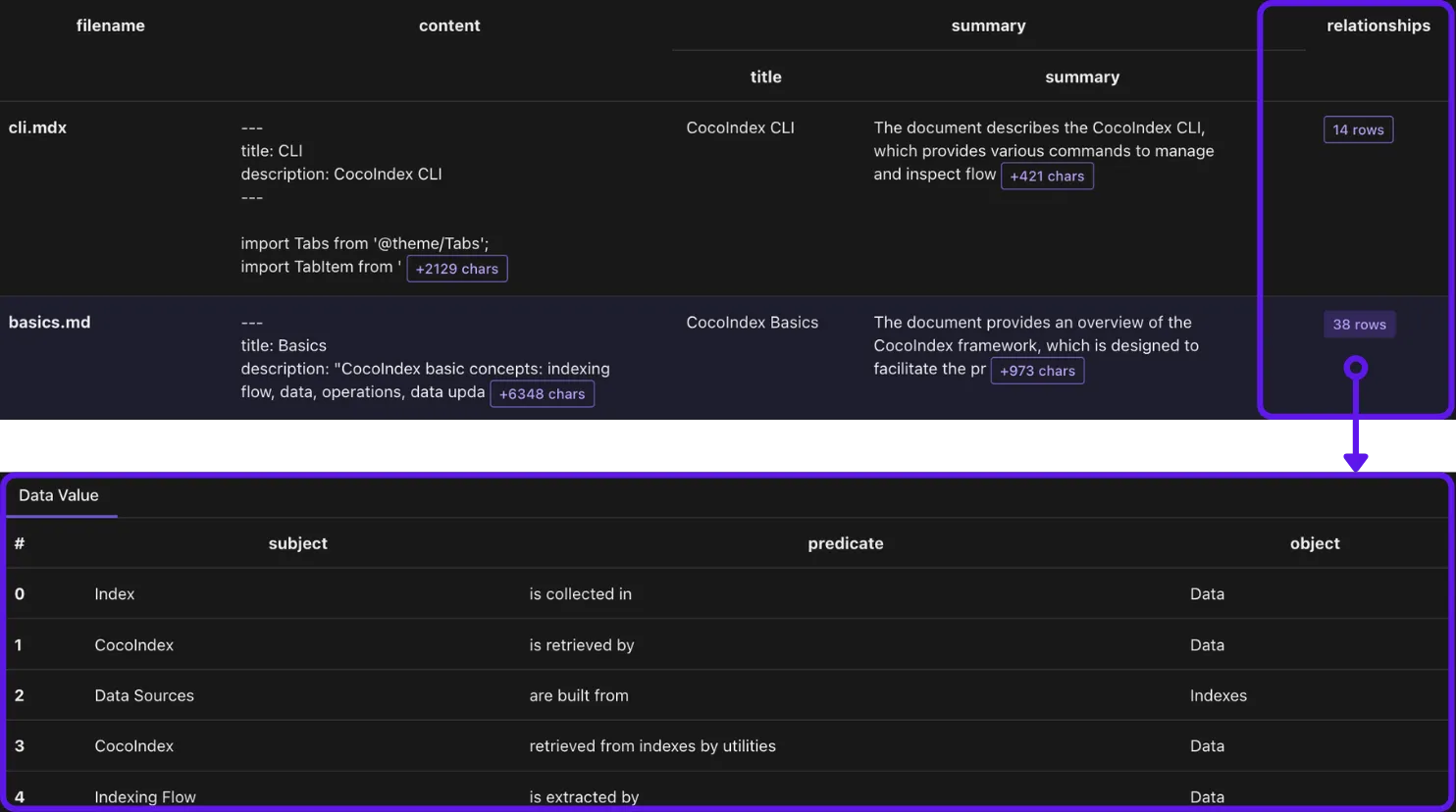

The extract_relationships function reads basics.md and returns a list of typed triples, such as (Index, is collected in, Data) and (Data Sources, are built from, Indexes).

Phase 1: one Document node per file

process_file handles a single document: read the content, extract the summary, declare the Document node into the graph, and return the triples for phase 2. declare_record writes one node; CocoIndex reconciles it into Neo4j by the primary key:

python
@coco.fn(memo=True)
async def process_file(
    file: localfs.File,
    document_table: neo4j.TableTarget[Document],
) -> DocTriples:
    content = await file.read_text()
    filename = file.file_path.path.as_posix()

    summary = await extract_summary(content)
    document_table.declare_record(
        row=Document(filename=filename, title=summary.title, summary=summary.summary)
    )

    triples = await extract_relationships(content)
    return DocTriples(filename=filename, triples=triples)

Each declared record becomes a Document node keyed by filename, with the title and summary carried across as node properties:

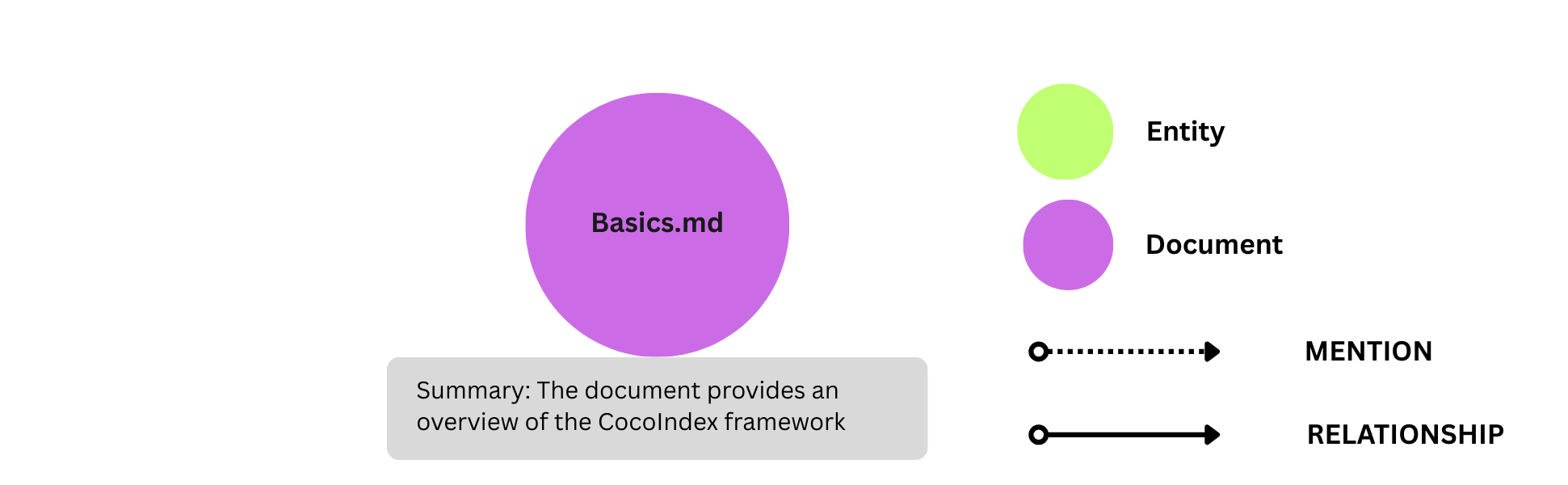

Each Document record declared by process_file becomes one Document node in Neo4j: filename is the primary key, and title and summary become node properties.

Phase 2: build the concept graph

Phase 2 receives the triples from every document. Because Entity nodes are keyed by value, declaring CocoIndex from ten different documents still produces exactly one node: CocoIndex deduplicates by the primary key. The edges then fan out from that one node, which is exactly what you want when you later query “what mentions this concept?”.

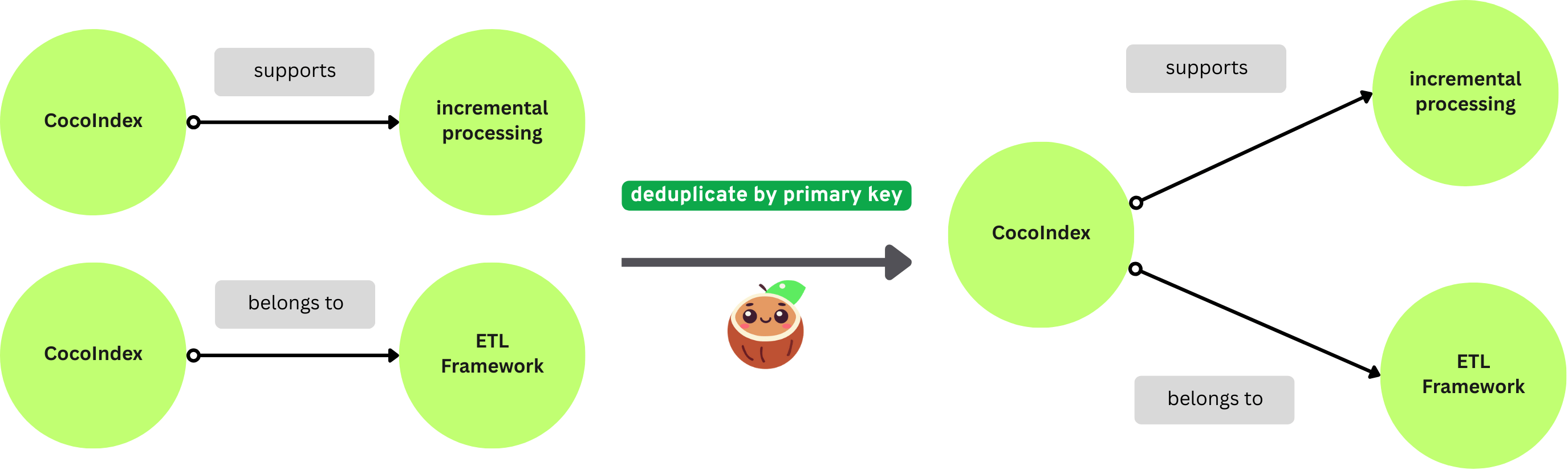

Deduplication by primary key: two triples from different documents both name CocoIndex as their subject, and the graph pass collapses them into a single CocoIndex entity node with two outgoing relationship edges.

One pass gathers the distinct entities and mentions, then declares everything. declare_relation connects two nodes by their primary keys, and generate_id hashes each triple so the same fact always maps to the same edge, whether it is re-extracted or asserted again by another document:

python
@coco.fn
async def build_graph(
    docs: list[DocTriples],
    entity_table: neo4j.TableTarget[Entity],
    relationship_rel: neo4j.RelationTarget[Relationship],
    mention_rel: neo4j.RelationTarget[Any],
) -> None:
    entities: set[str] = set()
    mentions: set[tuple[str, str]] = set()  # (filename, entity value)

    for doc in docs:
        for t in doc.triples:
            entities.add(t.subject)
            entities.add(t.object)
            mentions.add((doc.filename, t.subject))
            mentions.add((doc.filename, t.object))

            rel_id = await generate_id((t.subject, t.predicate, t.object))
            relationship_rel.declare_relation(
                from_id=t.subject,
                to_id=t.object,
                record=Relationship(id=rel_id, predicate=t.predicate),
            )

    for value in entities:
        entity_table.declare_record(row=Entity(value=value))

    for filename, entity in mentions:
        mention_rel.declare_relation(from_id=filename, to_id=entity)

The RELATIONSHIP edges connect Entity nodes, with the predicate stored on the edge:

RELATIONSHIP edges between entity nodes: CocoIndex connects to Incremental Processing with the predicate "supports" stored as an edge property.

The MENTION edges record which document named which concept. For example, basics.md has a sentence “CocoIndex supports Incremental Processing”, so it mentions both CocoIndex and Incremental Processing:

MENTION edges: the Basics.md document node connects with dashed mention edges to both entity nodes it references, alongside the solid relationship edge between them.

Wire up the app

app_main mounts the two node tables and the two relation targets, walks the docs folder, fans out one process_file per document, then runs the single build_graph pass over the collected triples:

python
@coco.fn
async def app_main(sourcedir: pathlib.Path) -> None:
    document_table = await neo4j.mount_table_target(
        KG_DB,
        "Document",
        await neo4j.TableSchema.from_class(Document, primary_key="filename"),
        primary_key="filename",
    )
    entity_table = await neo4j.mount_table_target(
        KG_DB,
        "Entity",
        await neo4j.TableSchema.from_class(Entity, primary_key="value"),
        primary_key="value",
    )
    relationship_rel = await neo4j.mount_relation_target(
        KG_DB,
        "RELATIONSHIP",
        entity_table,
        entity_table,
        await neo4j.TableSchema.from_class(Relationship, primary_key="id"),
        primary_key="id",
    )
    mention_rel = await neo4j.mount_relation_target(
        KG_DB, "MENTION", document_table, entity_table
    )

    files = localfs.walk_dir(
        sourcedir,
        recursive=True,
        path_matcher=PatternFilePathMatcher(included_patterns=["**/*.md", "**/*.mdx"]),
    )
    file_coros = []
    async for path_key, file in files.items():
        file_coros.append(
            coco.use_mount(
                coco.component_subpath("file", path_key),
                process_file,
                file,
                document_table,
            )
        )
    docs: list[DocTriples] = list(await asyncio.gather(*file_coros))

    await coco.mount(
        coco.component_subpath("build_graph"),
        build_graph,
        docs,
        entity_table,
        relationship_rel,
        mention_rel,
    )


app = coco.App(
    coco.AppConfig(name="DocsToKnowledgeGraph"),
    app_main,
    sourcedir=pathlib.Path("./markdown_files"),
)

RELATIONSHIP is mounted with the Relationship schema so each distinct triple, keyed by the hashed id, becomes its own edge. MENTION is mounted without a schema, so the connector keys it by the endpoints.

Run it

Start Neo4j, install the example, and build the graph. The example ships a markdown_files/ folder of sample docs so it runs out of the box:

sh
docker run -d -p 7474:7474 -p 7687:7687 -e NEO4J_AUTH=neo4j/cocoindex --name cocoindex-neo4j neo4j:5.26-community
cp .env.example .env     # set OPENAI_API_KEY (or LLM_MODEL=ollama/llama3.2 to run locally)
pip install -e .
cocoindex update main

To graph your own docs, drop .md / .mdx files into markdown_files/ (or point sourcedir at your real docs folder) and re-run. Only changed documents are re-extracted; a no-change re-run makes zero LLM calls.

Browse the knowledge graph

Open Neo4j Browser (username neo4j, password cocoindex) and run a Cypher query. To see how concepts relate:

cypher
MATCH (a:Entity)-[r:RELATIONSHIP]->(b:Entity)
RETURN a.value, r.predicate, b.value

To find the concepts mentioned in the most documents:

cypher
MATCH (d:Document)-[:MENTION]->(e:Entity)
RETURN e.value, count(DISTINCT d) AS docs
ORDER BY docs DESC LIMIT 10

Or MATCH p=()-->() RETURN p to see everything:

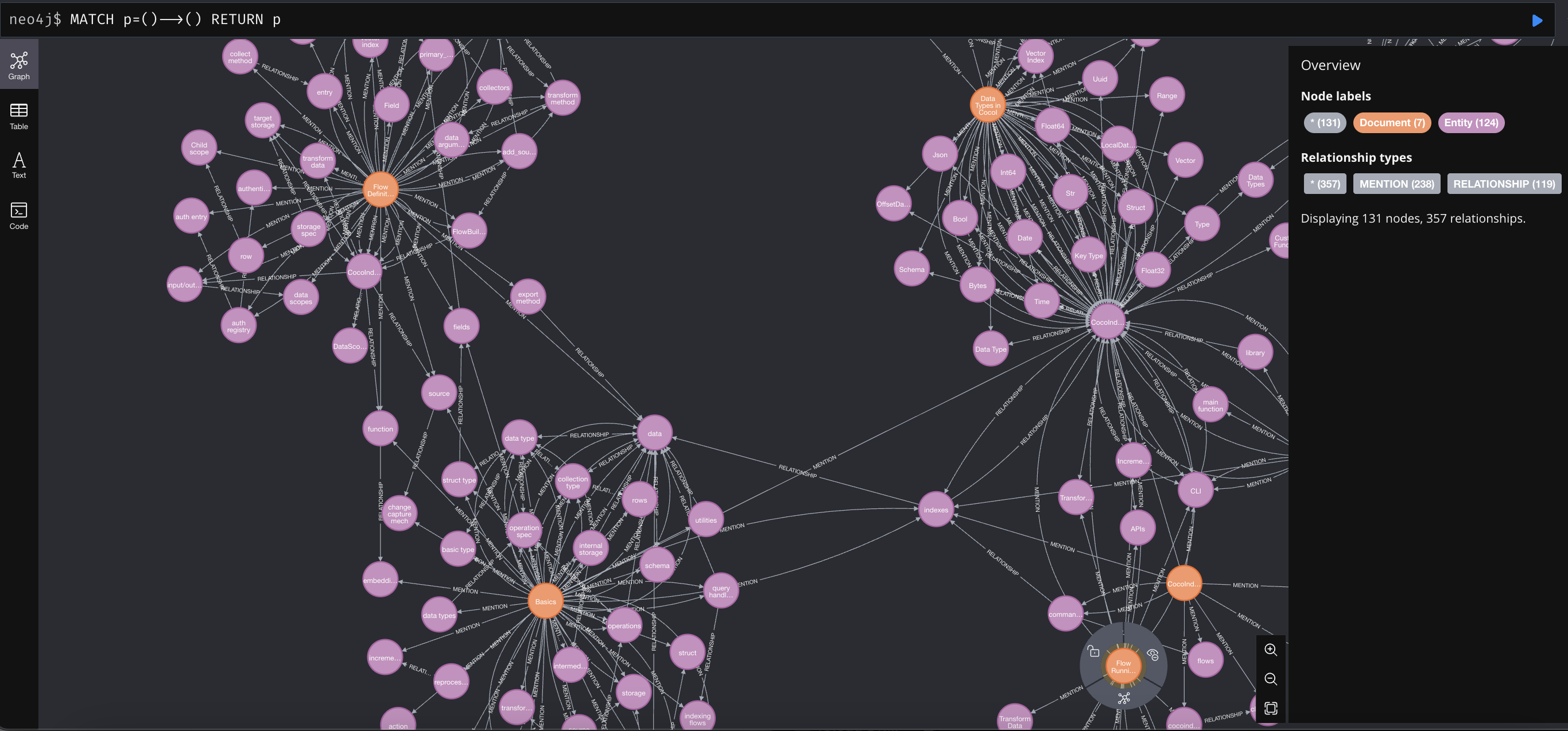

Neo4j Browser showing the knowledge graph built from the CocoIndex docs: document and entity nodes connected by MENTION and RELATIONSHIP edges.

Near-duplicate entities

The LLM will sometimes name the same concept two ways (“CocoIndex” vs “Cocoindex”). The meeting notes graph example adds an embedding plus LLM entity-resolution pass that collapses near-duplicates; it drops into this pipeline between the two phases.
