Index Images with ColPali

View on GitHub

Overview​

CocoIndex now supports native integration with ColPali — enabling multi-vector, patch-level image indexing using cutting-edge multimodal models. With just a few lines of code, you can now embed and index images with ColPali’s late-interaction architecture, fully integrated into CocoIndex’s composable flow system.

Why ColPali for Indexing?​

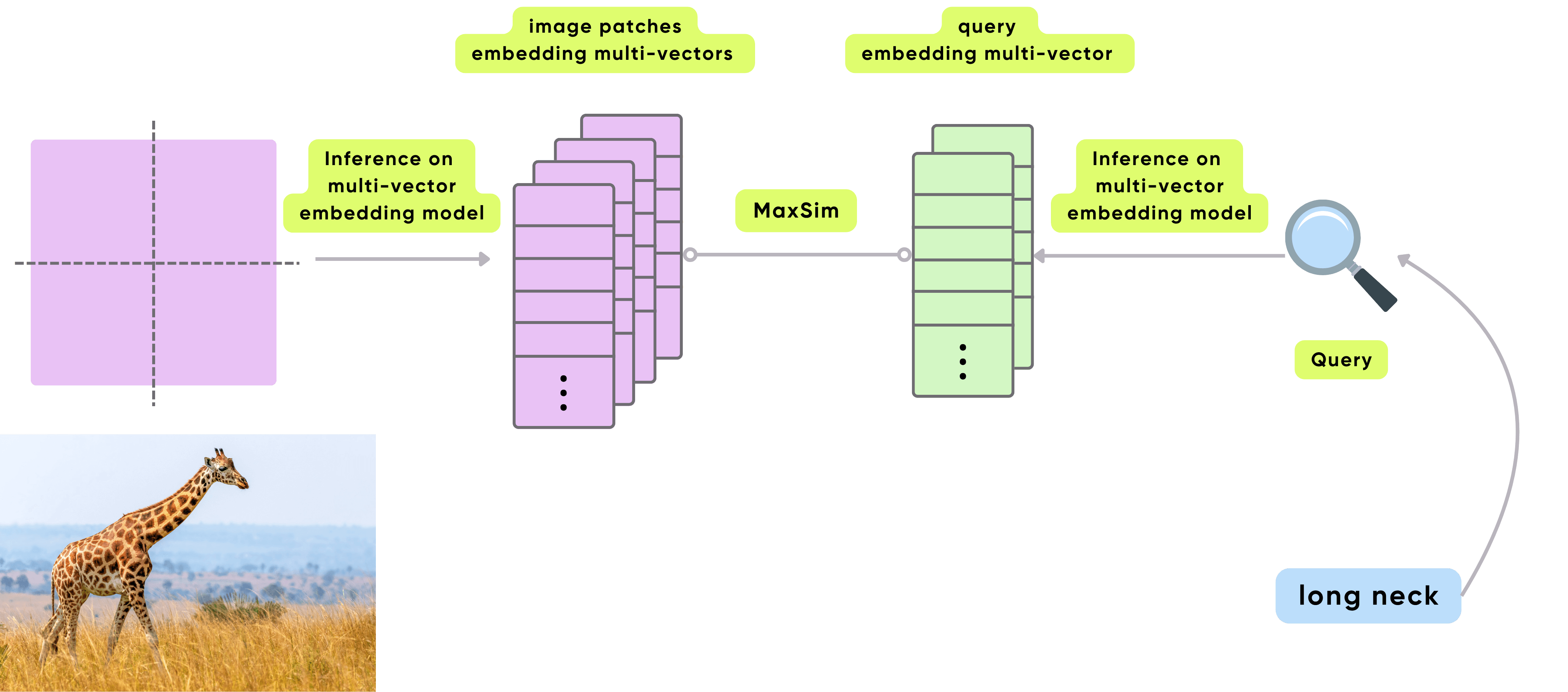

ColPali (Contextual Late-interaction over Patches) is a powerful model for multimodal retrieval.

It fundamentally rethinks how documents—especially visually complex or image-rich ones—are represented and searched. Instead of reducing each image or page to a single dense vector (as in traditional bi-encoders), ColPali breaks an image into many smaller patches, preserving local spatial and semantic structure. Each patch receives its own embedding, which together form a multi-vector representation of the complete document.

Declare an Image Indexing Flow with CocoIndex​

In this example, we will use CocoIndex to index images with ColPali, and Qdrant to store and retrieve the embeddings.

This flow illustrates how we’ll process and index images using ColPali:

  1. Ingest image files from the local filesystem
  2. Use ColPali to embed each image into patch-level multi-vectors
  3. Optionally extract image captions using an LLM
  4. Export the embeddings (and optional captions) to a Qdrant collection

Check out the full working code here.

⭐ Star CocoIndex on GitHub if you like it!

1. Ingest the Images​

We start by defining a flow to read .jpg, .jpeg, and .png files from a local directory using LocalFile.


@cocoindex.flow_def(name="ImageObjectEmbeddingColpali")
def image_object_embedding_flow(flow_builder, data_scope):
    data_scope["images"] = flow_builder.add_source(
        cocoindex.sources.LocalFile(
            path="img",
            included_patterns=["*.jpg", "*.jpeg", "*.png"],
            binary=True
        ),
        refresh_interval=datetime.timedelta(minutes=1),
    )

The add_source function sets up a table with fields like filename and content. Images are automatically re-scanned every minute.

2. Process Each Image and Collect the Embedding​

2.1 Embed the Image with ColPali​

We use CocoIndex's built-in ColPaliEmbedImage function, which returns a multi-vector representation for each image. Each patch receives its own vector, preserving spatial and semantic information.

img_embeddings = data_scope.add_collector()
with data_scope["images"].row() as img:
    img["embedding"] = img["content"].transform(cocoindex.functions.ColPaliEmbedImage(model="vidore/colpali-v1.2"))

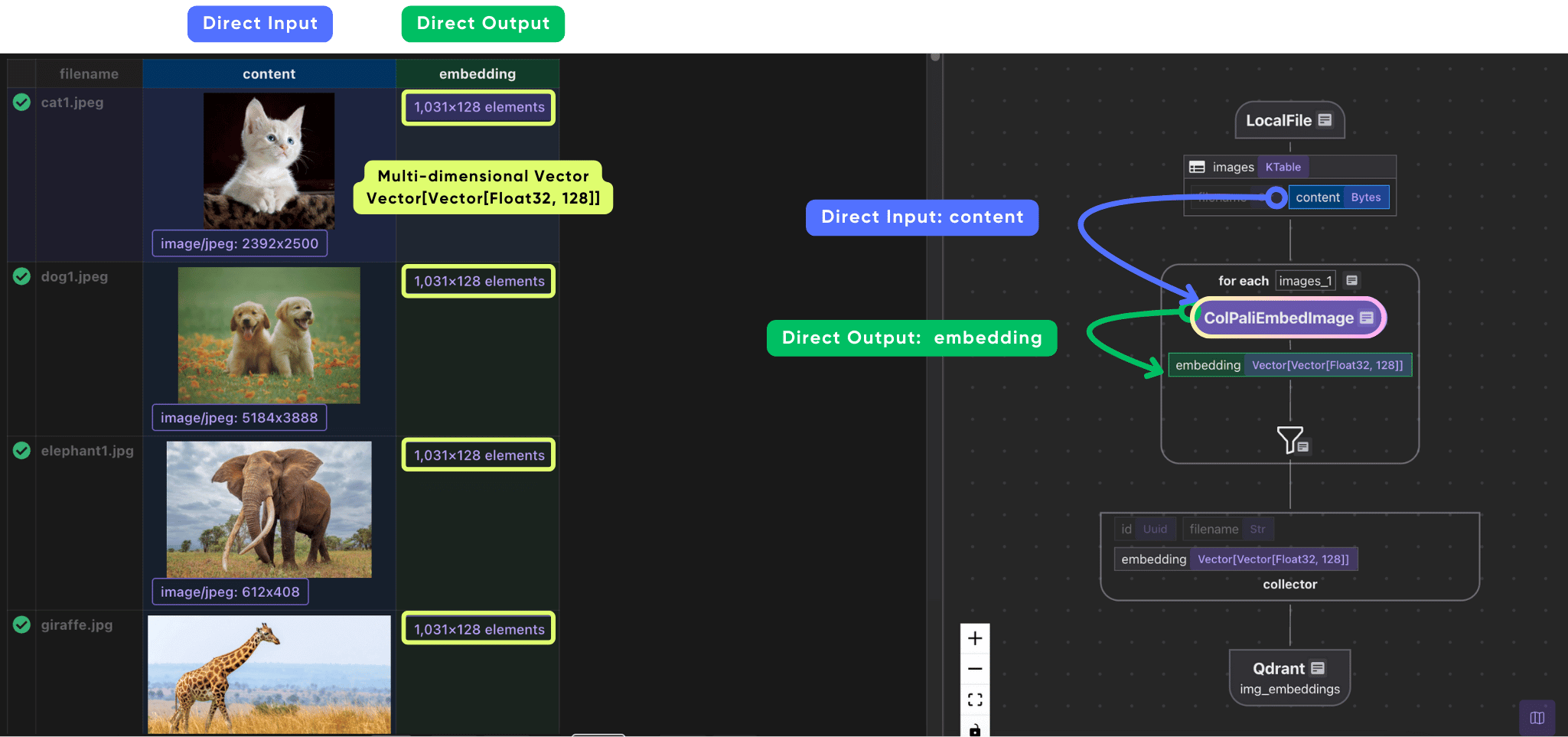

This transformation turns the raw image bytes into a list of vectors — one per patch — that can later be used for late interaction search.

3. Collect and Export the Embeddings​

Once we’ve processed each image, we collect its metadata and embedding and send it to Qdrant.

collect_fields = {
    "id": cocoindex.GeneratedField.UUID,
    "filename": img["filename"],
    "embedding": img["embedding"],
}
img_embeddings.collect(**collect_fields)

Then we export to Qdrant using the Qdrant target:

img_embeddings.export(
    "img_embeddings",
    cocoindex.targets.Qdrant(collection_name="ImageSearchColpali"),
    primary_key_fields=["id"],
)

This creates a vector collection in Qdrant that supports multi-vector fields — required for ColPali-style late interaction search.

4. Enable Real-Time Indexing​

To keep the image index up to date automatically, we wrap the flow in a FlowLiveUpdater:

@asynccontextmanager
async def lifespan(app: FastAPI):
    load_dotenv()
    cocoindex.init()
    image_object_embedding_flow.setup(report_to_stdout=True)
    app.state.live_updater = cocoindex.FlowLiveUpdater(image_object_embedding_flow)
    app.state.live_updater.start()
    yield

This keeps your vector index fresh as new images arrive.

What’s Actually Stored?​

Unlike typical image search pipelines that store one global vector per image, ColPali stores:

Vector[Vector[Float32, N]]

Where:

  • The outer dimension is the number of patches
  • The inner dimension is the model’s hidden size

This makes the index multi-vector ready, and compatible with late-interaction query strategies — like MaxSim or learned fusion.

Real-Time Indexing with Live Updater​

You can also attach CocoIndex’s FlowLiveUpdater to your FastAPI or any Python app to keep your ColPali index synced in real time:

from fastapi import FastAPI
from contextlib import asynccontextmanager

@asynccontextmanager
async def lifespan(app: FastAPI):
    load_dotenv()
    cocoindex.init()
    image_object_embedding_flow.setup(report_to_stdout=True)
    app.state.live_updater = cocoindex.FlowLiveUpdater(image_object_embedding_flow)
    app.state.live_updater.start()
    yield

Retrivel and application​

Refer to this example on Query and application building: https://cocoindex.io/blogs/live-image-search#3-query-the-index

Make sure we use ColPali to embed the query

@app.get("/search")
def search(
    q: str = Query(..., description="Search query"),
    limit: int = Query(5, description="Number of results"),
) -> Any:
    # Get the multi-vector embedding for the query
    query_embedding = text_to_colpali_embedding.eval(q)

Full working code is available here.

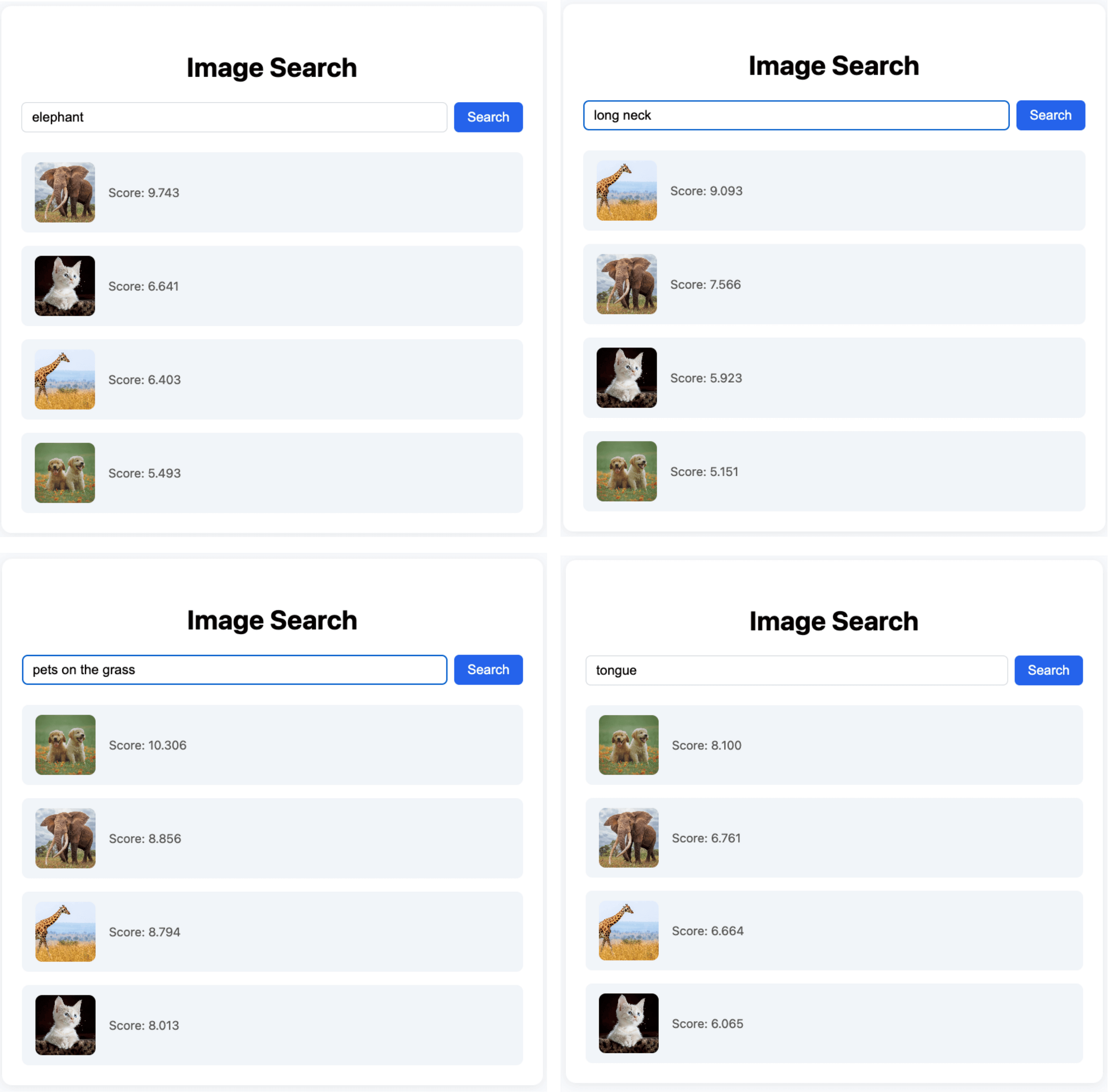

Check it out for yourself! It is fun :) In this image search example, the results look better compared to using CLIP with a single dense vector (1D embedding). ColPali produces richer and more fine-grained retrieval.

Built with Flexibility in Mind​

Whether you’re working on:

  • Visual RAG
  • Multimodal retrieval systems
  • Fine-grained visual search tools
  • Or want to bring image understanding to your AI agent workflows

CocoIndex + ColPali gives you a modular, modern foundation to build from.

Connect to Any Data Source — and Keep It in Sync​

One of CocoIndex’s core strengths is its ability to connect to your existing data sources and automatically keep your index fresh. Beyond local files, CocoIndex natively supports source connectors including:

  • Google Drive
  • Amazon S3 / SQS
  • Azure Blob Storage

See documentation here.

Once connected, CocoIndex continuously watches for changes — new uploads, updates, or deletions — and applies them to your index in real time.

Support us​

We’re constantly adding more examples and improving our runtime. If you found this helpful, please ⭐ star CocoIndex on GitHub and share it with others.
